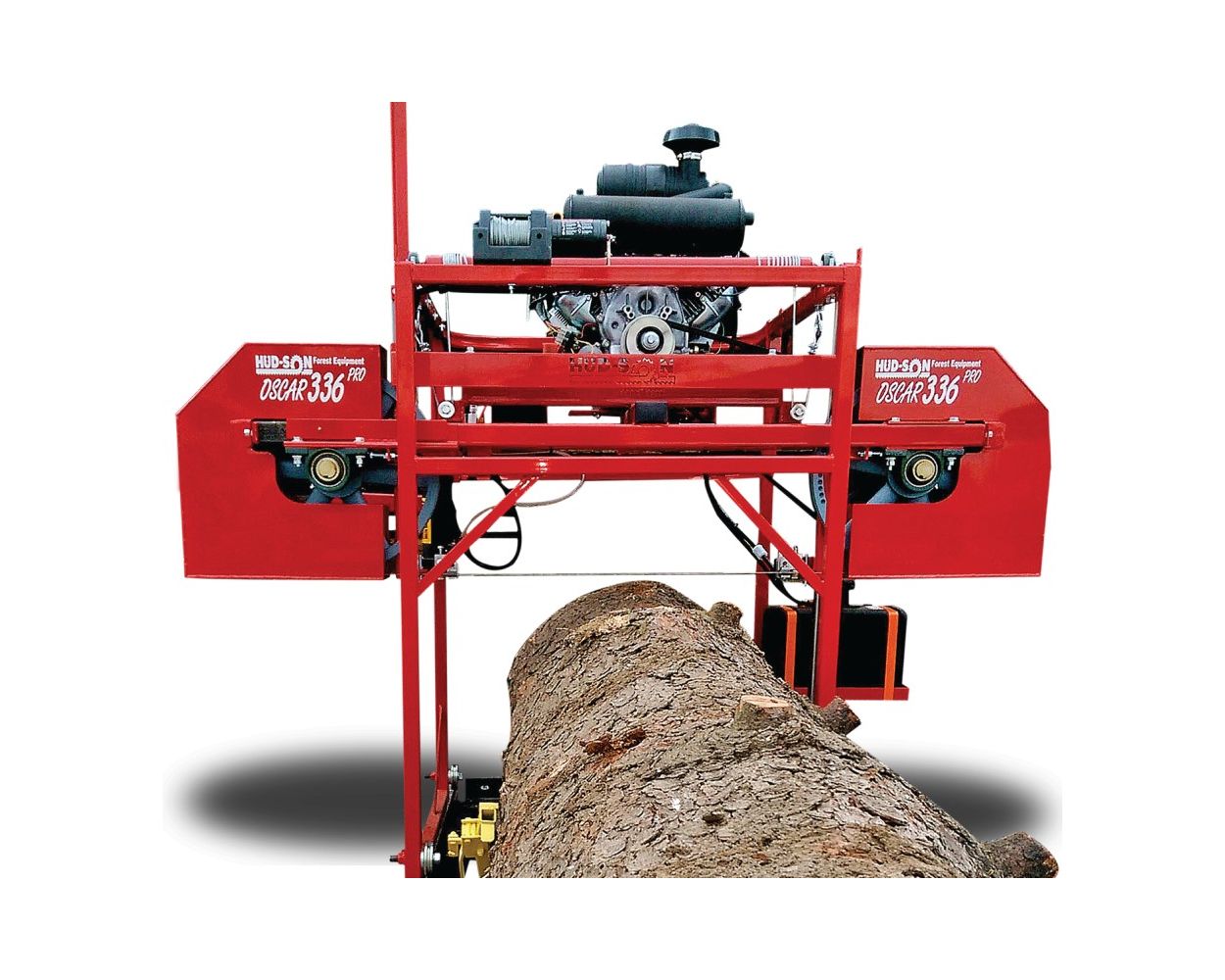

Oscar 336 Pro Sawmill

$12,495.00
Call to Backorder
SKU
Oscar 336-40

The Oscar-336 is a great mill for the average and advances sawyers. No matter what your needs for a sawmill might be time always plays a factor in ones needs. You could be under pressure of supplying customers or you just need to finish a project so you can take some time to relax. The Oscar 336 makes quick work of log-to-lumber and slabbing needs. Not only can the Oscar-336 give you impressive performance with the power height adjustment sawmill head performance comes with ease. The Oscar-336 features Hud-son’s Halo Frame design. This sleek design contributes to the strength and quality that is expected from a Hud-son Forest Equipment product. The Halo Design also accommodates the powerful engine options to keep up with the performance needs. A must have around the farm, ranch and woodlots. The Oscar 336 boasts a 23 HP V-twin overhead valve motor allowing you to slice through any wood up to 36″ in diameter. Want more power? Other engines options include a 35hp available motor. The Oscar 336 is available as a ground unit or complete unit on a trailer. The band wheels ride on a heavy-duty 1 ½” shaft supported by two pillow block bearings on each side of the wheel. This configuration distributes the pressure load evenly over the shaft to eliminate premature shaft or bearing failure. We believe so strongly in this we guarantee the main bearings and shafts for 6 YEARS!

CUTTING

  • Max Log Capacity
    36″ Diameter
  • Distance Between Guide
    32″
  • Max Thickness of Cut
    11″
  • Standard Track Length
    21′ / 3 – 7′ Sections
  • Log Dogs
    3 Cam Style Dogs & Square Posts
  • Max Log Length (with standard track)
    17′
  • Blade
    167 X 1.25 X .042″
  • Blade Lubrication
    5 Gallon
  • Track Sweeps
    Yes

POWER

  • Engine / Motor
    40 hp
  • Clutch Engagement
    Centrifugal

CONSTRUCTION

  • Frame
    4 Post with Lift Tubes
  • Bandwheels
    19″
  • Guide System
    Dual Shoe Guides, 1 Adjustable
  • Lift System
    Power Lift System w/ Control
  • Measuring
    Dual Scale 1″and 4,5,6,8 Quarter
  • Main Bearings
    1.5″

WARRANTY

  • 3-Year Limited Warranty
    Residential Use
  • 1-Year Limited Warranty
    Commercial Use
  • 6-Year Warranty
    Main Shafts and Bearings
More Information
Price $12,495.00
